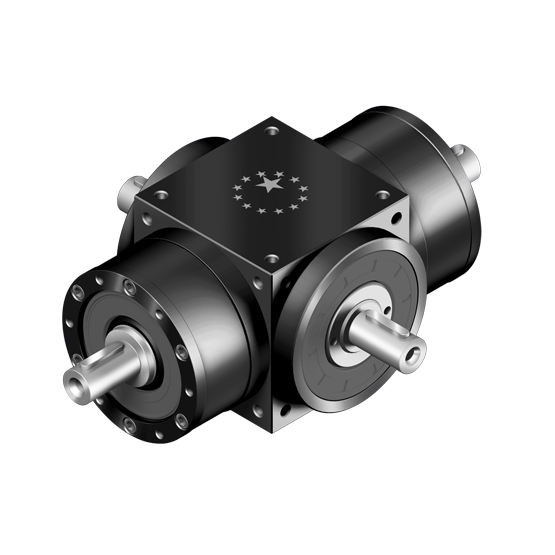

AT-4M-Series High Precision Spiral Bevel Gearboxes

The Apex AT-4M series is a 1:1 ratio spiral bevel servo grade gearbox constructed with four drive shafts and three spiral bevel gears. Suitable for line shaft applications, single input wit three driven output shafts and dual shaft applcitions that require a manual drive option.

Enquire Now

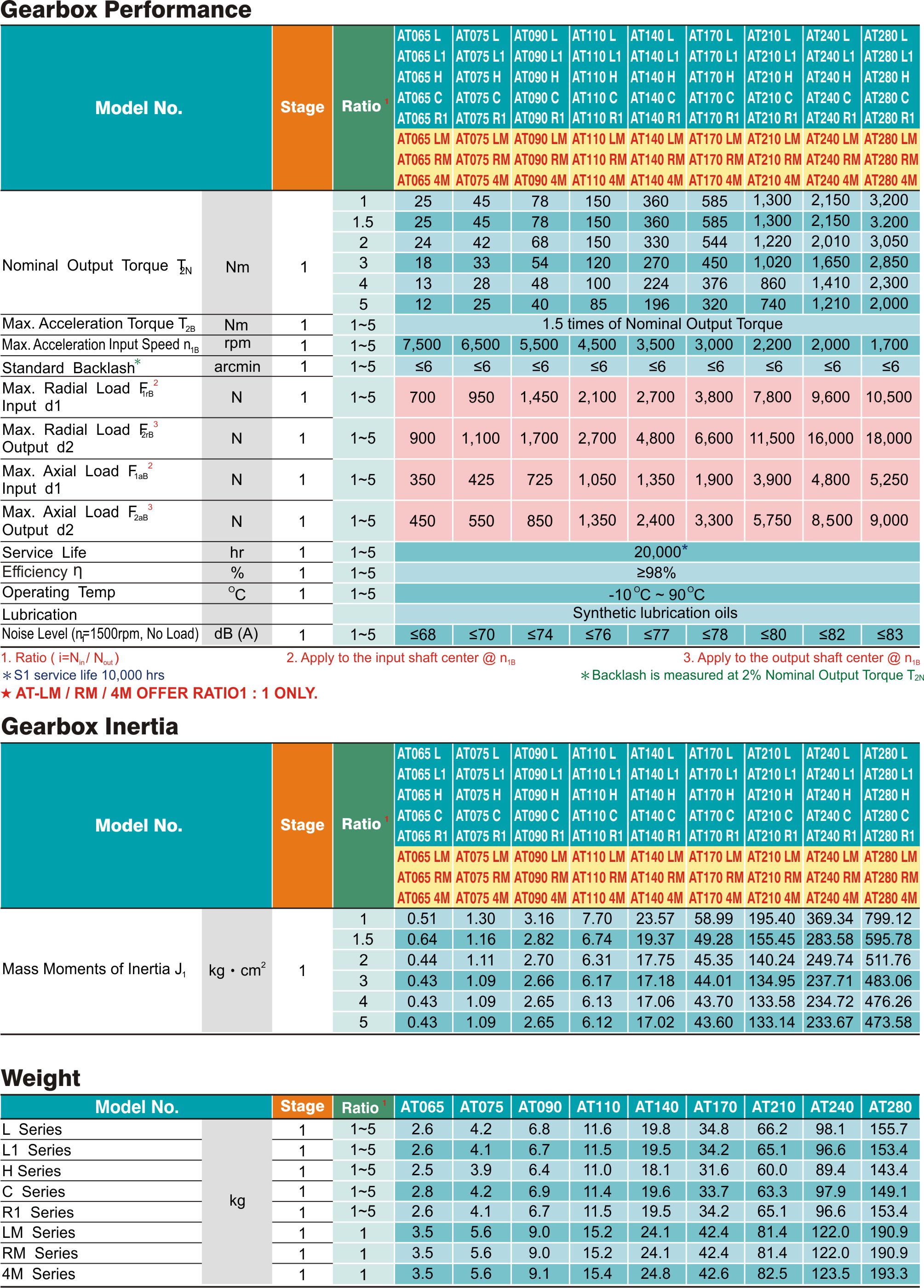

Overview

  • Output torque
    T2N : 12 Nm - 3,200 Nm
  • Ratios
    1-stage : 1
  • Low backlash
    1-stage : ≤6arcmin
  • high efficiency
    1-stage : ≧ 98%
  • Easy mount
  • Low Noise
  • Compact structure
