PAII-Series High Precision Planetary Gearboxes

The PAII series is an economy flanged output precision planetary gearbox with accuracy down to less than 6 arc minutes. The PII series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.

Enquire Now

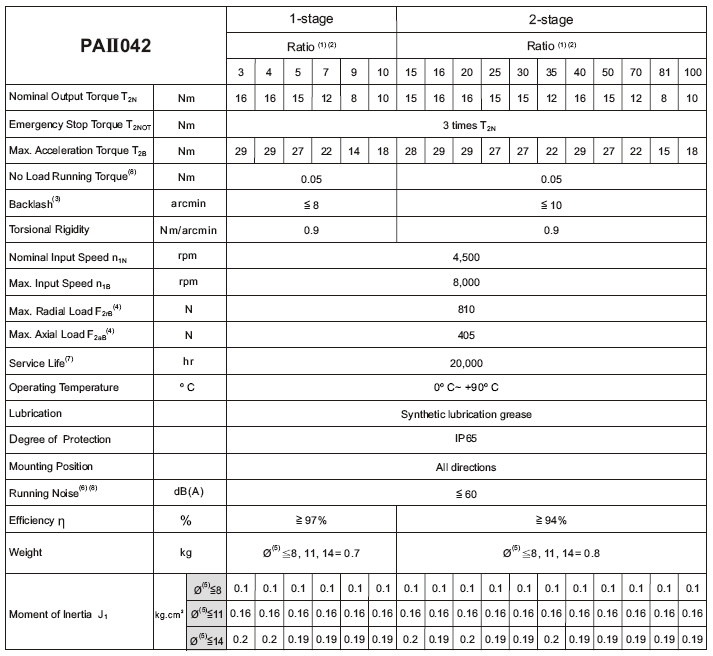

  • Output torque
    T2N : 4.3 Nm - 178 Nm
  • Ratios
    1-stage :  3/4/5/7/9/10
    2-stage :  15/16/20/25/30/35/40/50/70/81/100
  • Low backlash
    1-stage : ≤6,7 or 8 arcmin
    2-stage : ≤8,9 or 10 arcmin
  • high efficiency
    1-stage : ≧ 97%
    2-stage : ≧ 94%
  • Easy mount
  • Low Noise
  • Compact structure

PAII-Series High Precision Planetary Gearboxes
