AER-Series High Precision Planetary Gearboxes
AER-Series High Precision Planetary Gearboxes
The Apex AER series has a 90° input via helical bevel gear. Features an extremely short, light yet rigid housing and full compatibility with standard motor adapters.Apex is the only Manufacturer that Produces a Cylindrical Helical Stainless Steel Gearbox World Wide. High Precision, High Torque and Quiet Operation are provided by 100% optimized Helical Gearing. Straddle Mounted High Precision Bearings Allow for High Radial and Axial Loads.
Enquire Now

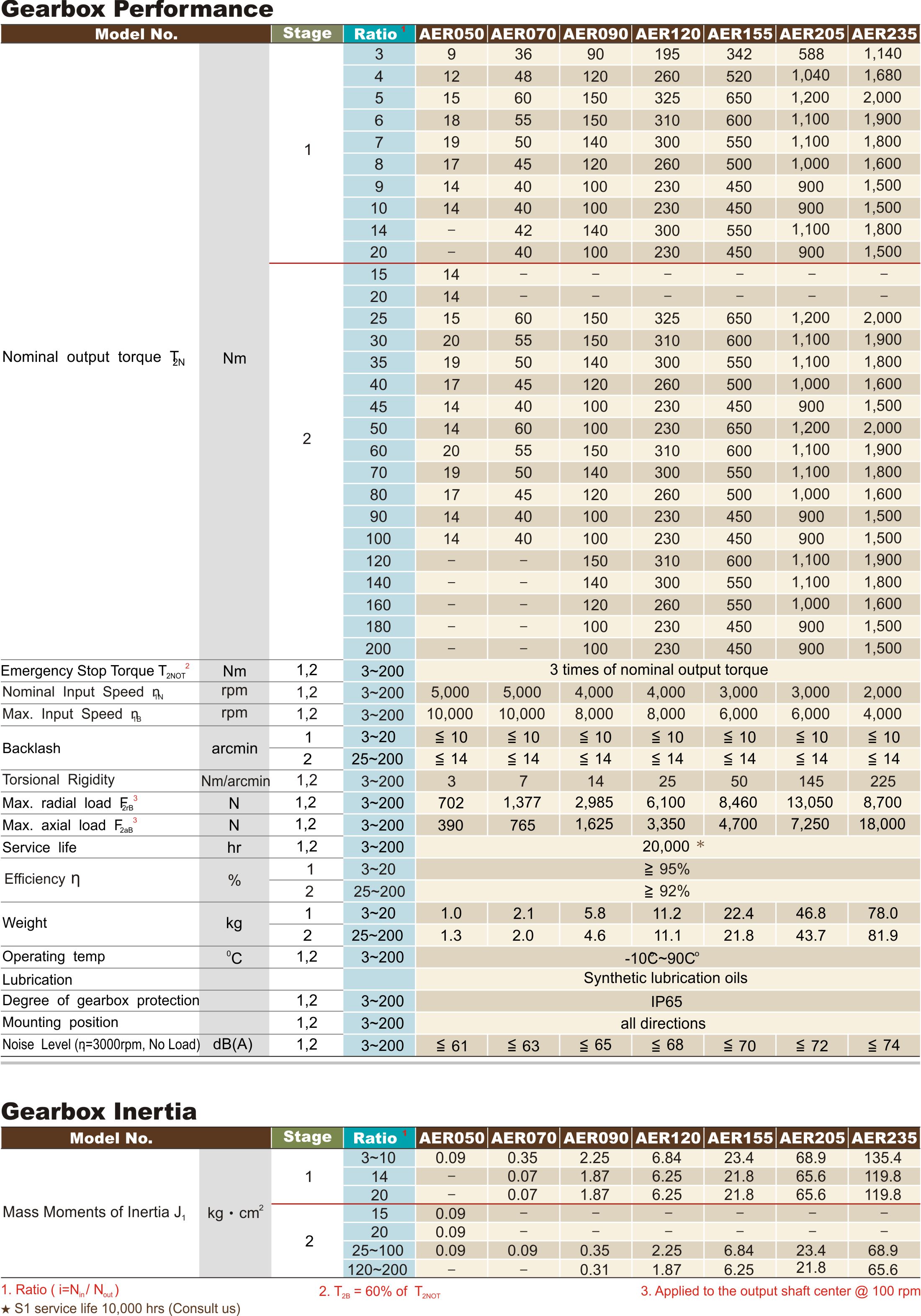

Overview
- Output torque
T2N : 9 Nm - 2000 Nm
- Ratios
1-stage : 3/4/5/6/7/8/9/10/14/20
2-stage :
15/20/25/30/35/40/45/50/60/70
80/90/100/120/140/160/180/200
*Only AER050 2-stage offers 15,20 option.
- Low backlash
1-stage : ≤10 arcmin
2-stage : ≤14 arcmin
- high efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
- Easy mount
- Low Noise
- Compact structure
